HDR Series Right-Angle Planetary Gearboxes
Model:HDR Series (064HDR, 090HDR, 110HDR, 140HDR, 200HDR)
Origin:Made in China
The HDR series offers five models ranging from 064HDR to 200HDR, with reduction ratios spanning from 3 to 200.
Rated input speed is 3000rpm, with a maximum input speed of 6000rpm. Supports P0 ultra-precision.
P1 precision and P2 standard backslash grades. Equipped with synthetic lubricating grease, IP65 protection rating, and mountable in any orientation.
Product Overview

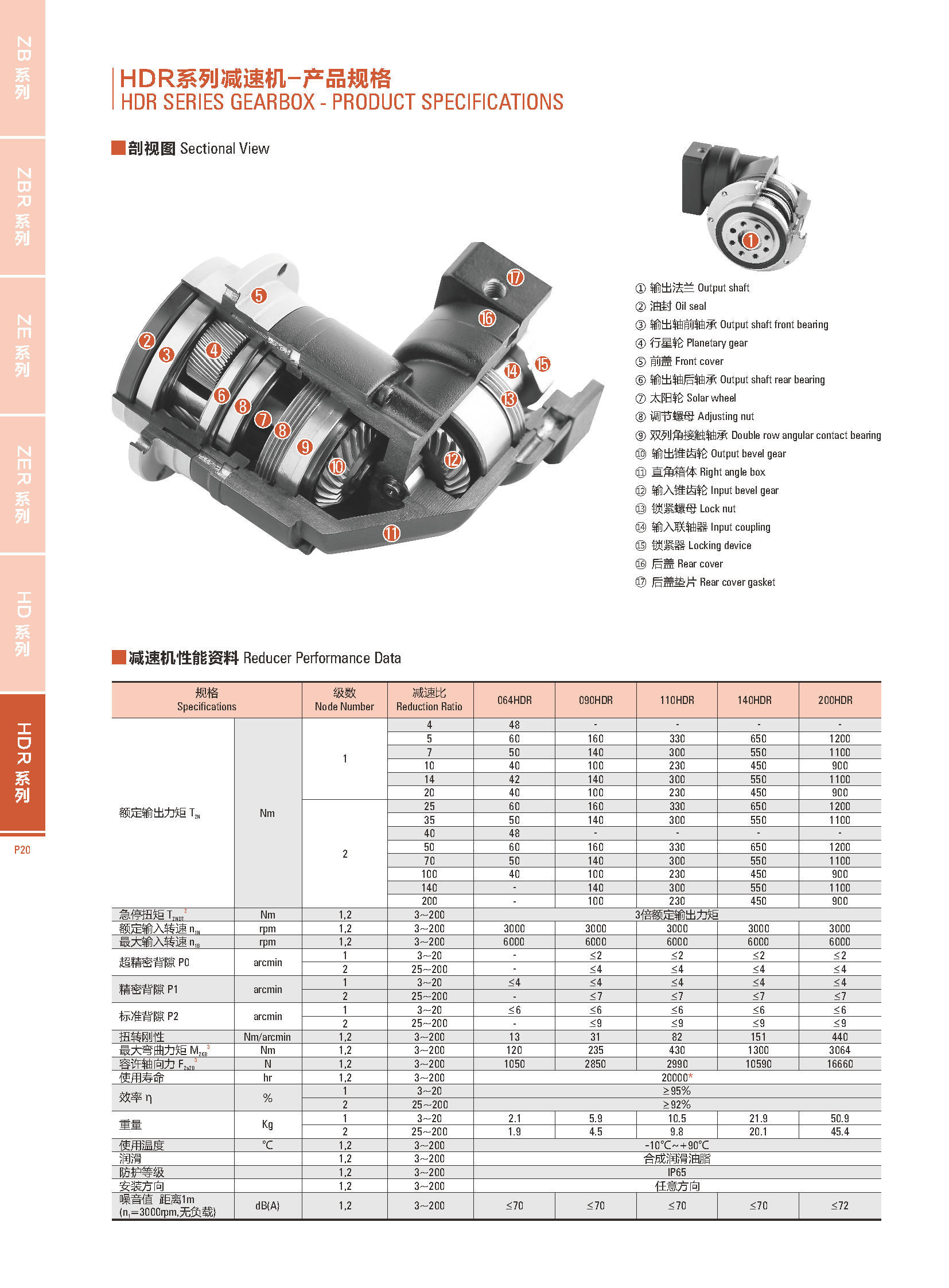

The HDR Series Right-Angle Planetary Gearbox features a combined planetary and bevel gear transmission structure, delivering 90° power transfer via its right-angle housing.
Compact design offering single- and two-stage reduction options with high output torque, low backlash, high rigidity, and high transmission efficiency.
Ideal for precision transmission systems with limited installation space and the need to change the direction of power transmission. Its internal structure mainly consists of planetary gears, a sun gear,
Consists of input/output bevel gears, double-row angular contact bearings, and input couplings.
Product Specifications
Product Series: HDR Series
Key Models: 064HDR / 090HDR / 110HDR / 140HDR / 200 HDR
Configuration: Right-angle planetary gearbox

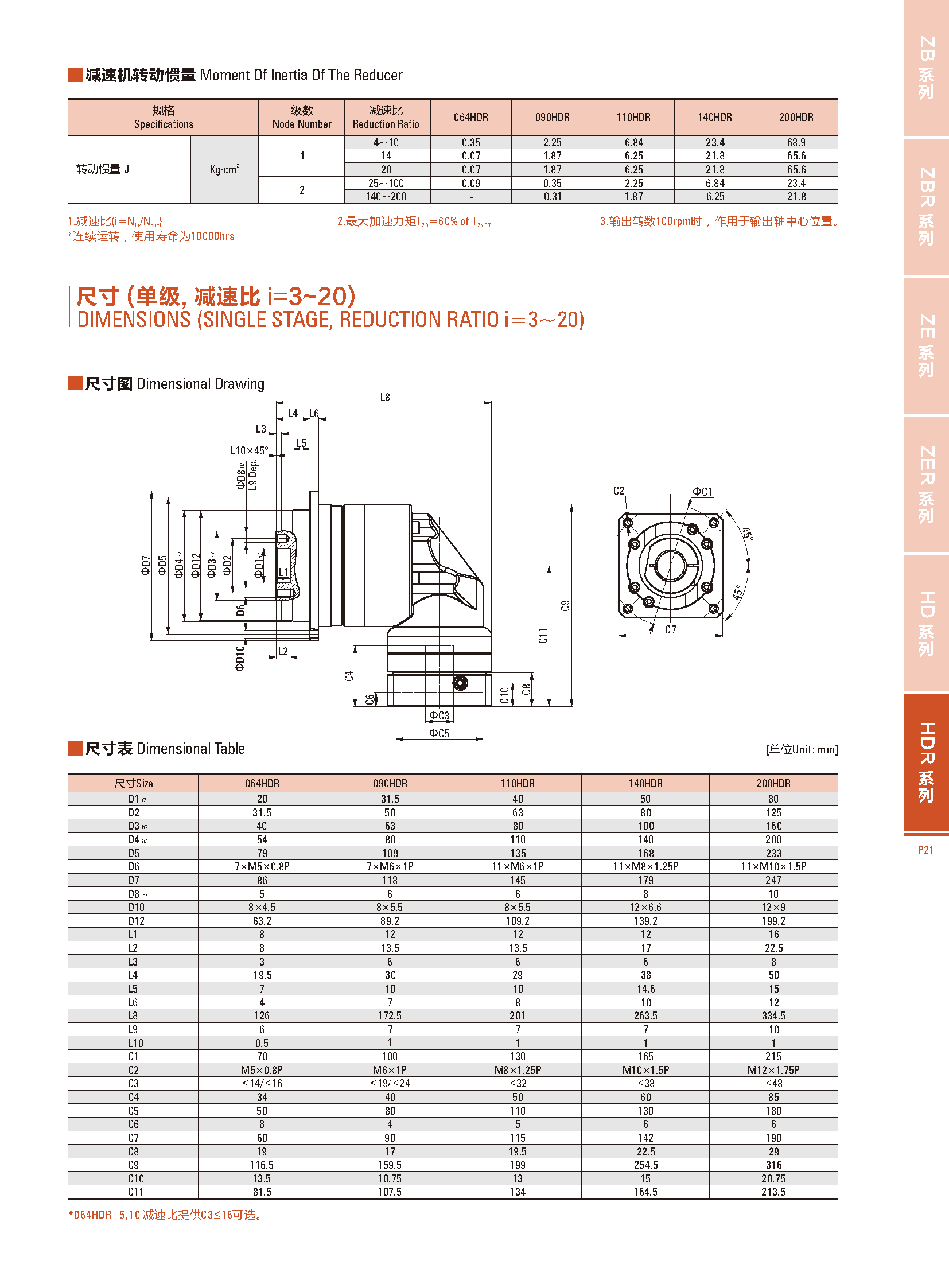

Single-stage reduction ratio: 3～20

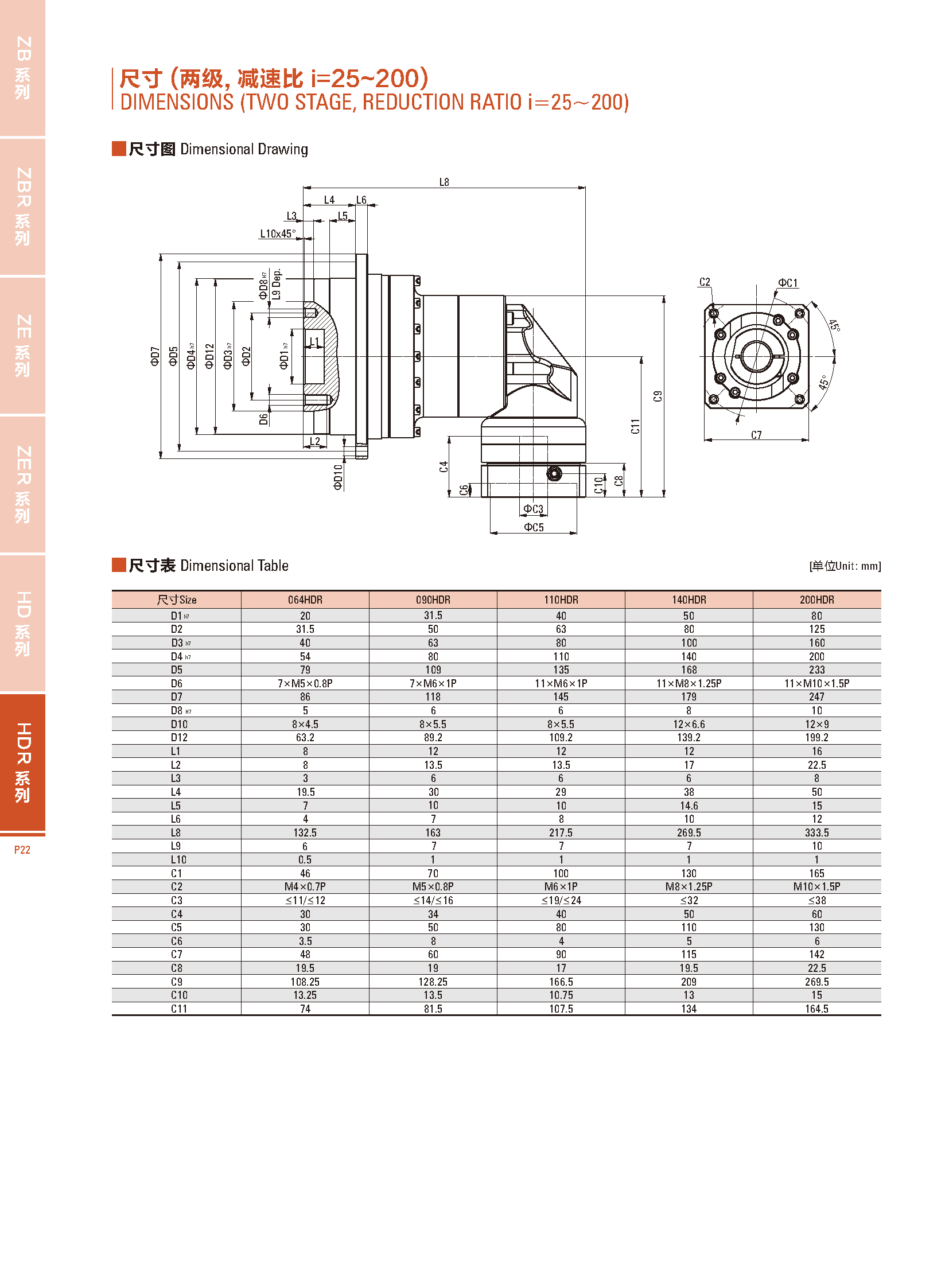

Two-stage reduction ratio: 25～200
Rated Input Speed: 3000 RPM
Maximum input speed: 6000 rpm
P0 Ultra-Precision Backlash: Minimum ≤ 2 arcmin
P1 Precision Backlash: ≤ 4 arcmin
P2 standard backlash: minimum ≤ 6 arcmin
Single-stage efficiency: ≥95%
Two-stage efficiency: ≥92%
Ingress Protection Rating: IP65
Operating temperature: -10°C to +90°C
Lubrication method: Synthetic lubricating grease
Mounting Orientation: Any Direction
Noise: ≤70dB(A), 200HDR≤72dB(A)
Main Structure: Planetary Gear + Bevel Gear Right-Angle Drive
Typical Use Cases
Industrial automation equipment, servo transmission systems, robotic joints, precision rotary tables, packaging machinery, material handling equipment, machine tools, and other industrial equipment requiring 90° rotation, high precision, and low-backlash transmission.
Note: The original documentation primarily provides structural, performance, and dimensional parameters. Typical applications are based on the HDR right-angle planetary drive structure.
