RTD Temperature Sensing Lead Wire, T-FGS (Teflon Insulation + Fiberglass Braiding + Copper Braiding)
Model:T-FGS (PTFE & Glass)
Origin:Made in Korea
Conductor Structure:Multi-strand stranded
Insulating materials:Teflon
Intermediate protection layer:Glass fiber braiding
Exterior protective structure:Copper wire braiding
Core Count:3-core / 6-core
Specifications: 0.35SQ
Compatible Products:RTD / PT100 / PT1000 Temperature Sensors
Product Overview
The T-FGS type RTD temperature sensing lead wire features a multi-strand twisted conductor, Teflon insulation, fiberglass braiding, and a copper braid outer shield. It offers excellent high-temperature resistance, abrasion resistance, mechanical protection, and electrical insulation.
Available in 3-conductor and 6-conductor versions for signal connections between RTD platinum resistance temperature sensors and temperature measurement and control equipment.
Product Specifications
Conductor Structure:Multi-strand twisted
Insulating Material:Teflon
Intermediate protection layer:Glass fiber weaving
Exterior protective structure:Copper wire braiding
Number of cores:3-core / 6-core
Specifications 0.35SQ
Compatible Products:RTD / PT100 / PT1000 Temperature Sensors

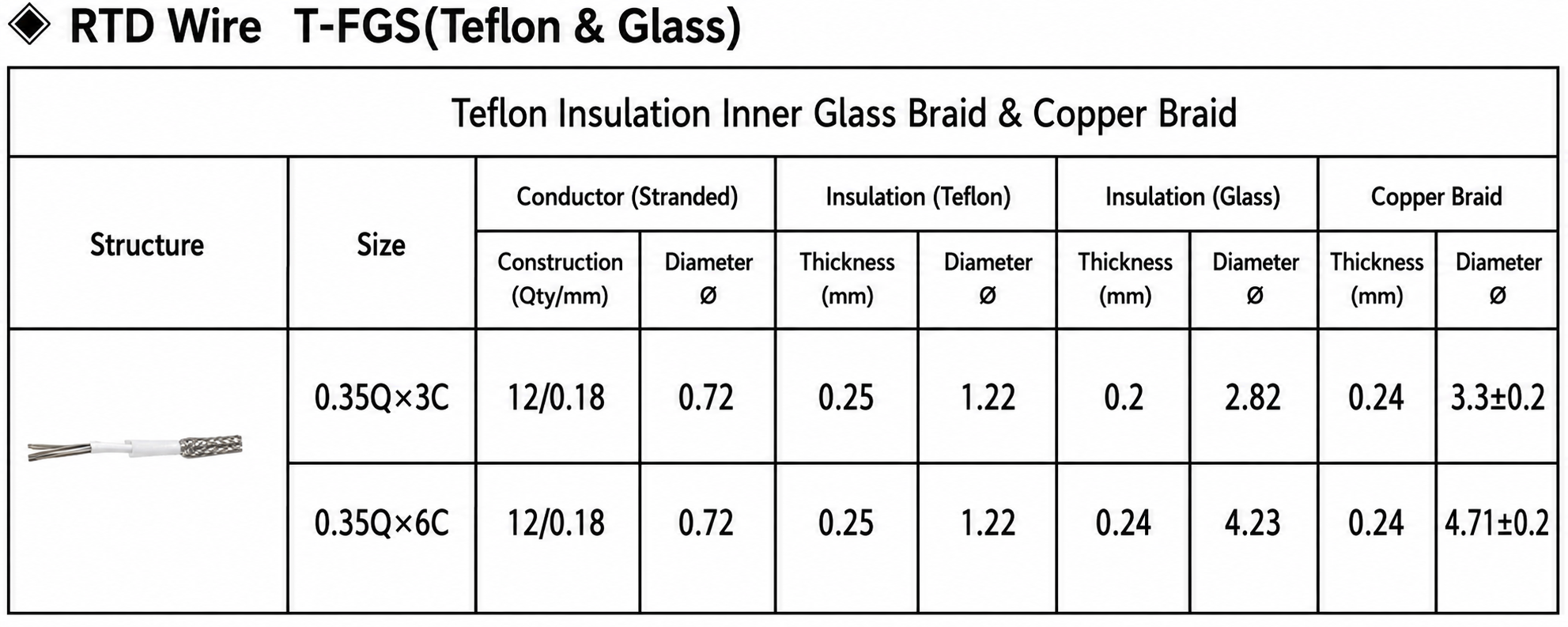

Project | 0.35SQ × 3C | 0.35SQ × 6C |
|---|---|---|
Conductor Structure | 12/0.18 mm | 12/0.18 mm |
Conductor Outer Diameter | Ø0.72 mm | Ø0.72 mm |
Teflon Insulation Thickness | 0.25 mm | 0.25 mm |
Teflon Insulation Outer Diameter | Ø1.22 mm | Ø1.22 mm |
Thickness of fiberglass braid layer | 0.20 mm | 0.24 mm |
Outer diameter of fiberglass layer | Ø2.82 mm | Ø4.23 mm |
Copper braid thickness | 0.24 mm | 0.24 mm |
Finished Outer Diameter | Ø3.30 ±0.2 mm | Ø4.71 ±0.2 mm |
For products and specifications not listed in the table above, please contact us for more information.
※ Products and specifications not listed in the table above are available upon request.
※ For products and specifications not listed in the table above, please inquire separately.
Typical Use Cases
Connects RTD platinum resistance temperature sensors to temperature measurement and control equipment. Ideal for industrial environments requiring high-temperature resistance, wear resistance, and mechanical protection.
Primary Applications:
• Semiconductor Manufacturing Equipment
• Industrial Automation Equipment
• Industrial Furnaces and Heat Treatment Equipment
• Heating and temperature control equipment
• High-temperature production equipment
• Precision Measurement and Test Equipment
• PT100 / PT1000 Temperature Measurement System
