RTD Temperature Sensing Wire - T-FK (FEP Insulation + Silicone Jacket)
Model:T-FK (Silicone)
Origin:Made in Korea
Provides 3-core and 4-core configurations for signal connection between PT100, PT1000 RTD platinum resistance temperature sensors and measurement or control devices.
Product Overview
The T-FK RTD thermocouple lead wire features a stranded tinned copper conductor, FEP Teflon insulation, and a silicone outer jacket. It offers excellent high-temperature resistance, flexibility, aging resistance, and electrical insulation performance.
Provides 3-core and 4-core configurations for signal connection between PT100, PT1000 RTD platinum resistance temperature sensors and measurement or control devices.
Product Specifications
Conductor Material:Tinned Copper Wire
Conductor Structure:Multi-strand twisted
Insulating Material:FEP Teflon
Jacket Material:Silicone
Number of cores:3-core / 4-core
Compatible Products:RTD / PT100 / PT1000 Temperature Sensors

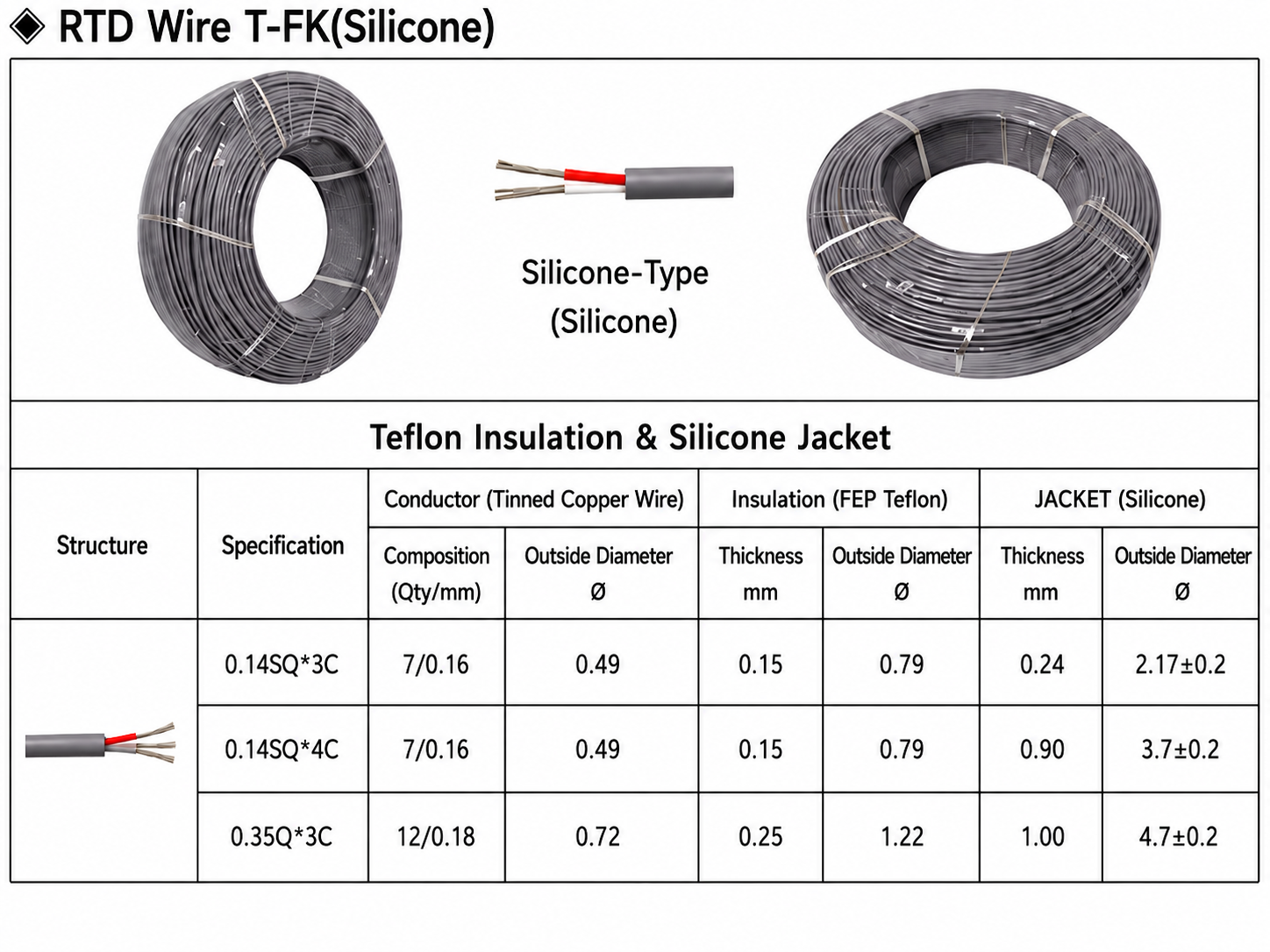

Specifications | Conductor Structure | Conductor Outer Diameter | FEP Insulation Thickness | Insulation Outer Diameter | Silicone sleeve thickness | Finished Outer Diameter |
|---|---|---|---|---|---|---|
0.14SQ × 3C | 7/0.16 mm | Ø0.49 mm | 0.15 mm | Ø0.79 mm | 0.24 mm | Ø2.17 ±0.2 mm |
0.14SQ × 4C | 7/0.16 mm | Ø0.49 mm | 0.15 mm | Ø0.79 mm | 0.90 mm | Ø3.7 ±0.2 mm |
0.3SQ × 3C | 12/0.18 mm | Ø0.72 mm | 0.25 mm | Ø1.22 mm | 1.00 mm | Ø4.7 ±0.2 mm |
Typical Use Cases
Connects RTD platinum resistance temperature sensors to temperature measurement and control devices. FEP insulation with a silicone jacket offers both high-temperature resistance and flexibility, making it ideal for industrial environments requiring frequent routing, bending, and significant temperature fluctuations.
Primary Applications:
• Semiconductor Manufacturing Equipment
• Industrial Automation Equipment
• Heating and temperature control equipment
• Industrial Furnaces and Heat Treatment Equipment
• Machinery and Production Equipment
• Experimental and Testing Equipment
• PT100 / PT1000 Temperature Measurement System
