RTD Temperature Measurement Wire T-FS (FEP Insulated with Copper Braid)
Model:T-FS (PTFE)
Origin:Made in Korea
Conductor Material:Tinned Copper Wire
Conductor Structure:Multi-strand stranded
Core Count:3-core (3C)
Insulating materials:FEP Teflon
Exterior protective structure:Copper wire braiding
Compatible Products:RTD / PT100 / PT1000 Temperature Sensors
Product Overview
The T-FS RTD temperature sensing lead features a multi-strand tinned copper conductor, FEP Teflon insulation, and a copper braid outer jacket.
Offers excellent heat resistance, corrosion resistance, wear resistance, and mechanical protection.
Features a 3-wire configuration for signal connection between PT100, PT1000, and other RTD platinum resistance temperature sensors and measurement/control devices.
Product Specifications
Conductor Material:Tinned Copper Wire
Conductor Structure:Multi-strand twisted
Number of cores:3-core (3C)
Insulating Material:FEP Teflon
Exterior protective structure:Copper wire braiding
Compatible Products:RTD / PT100 / PT1000 Temperature Sensors

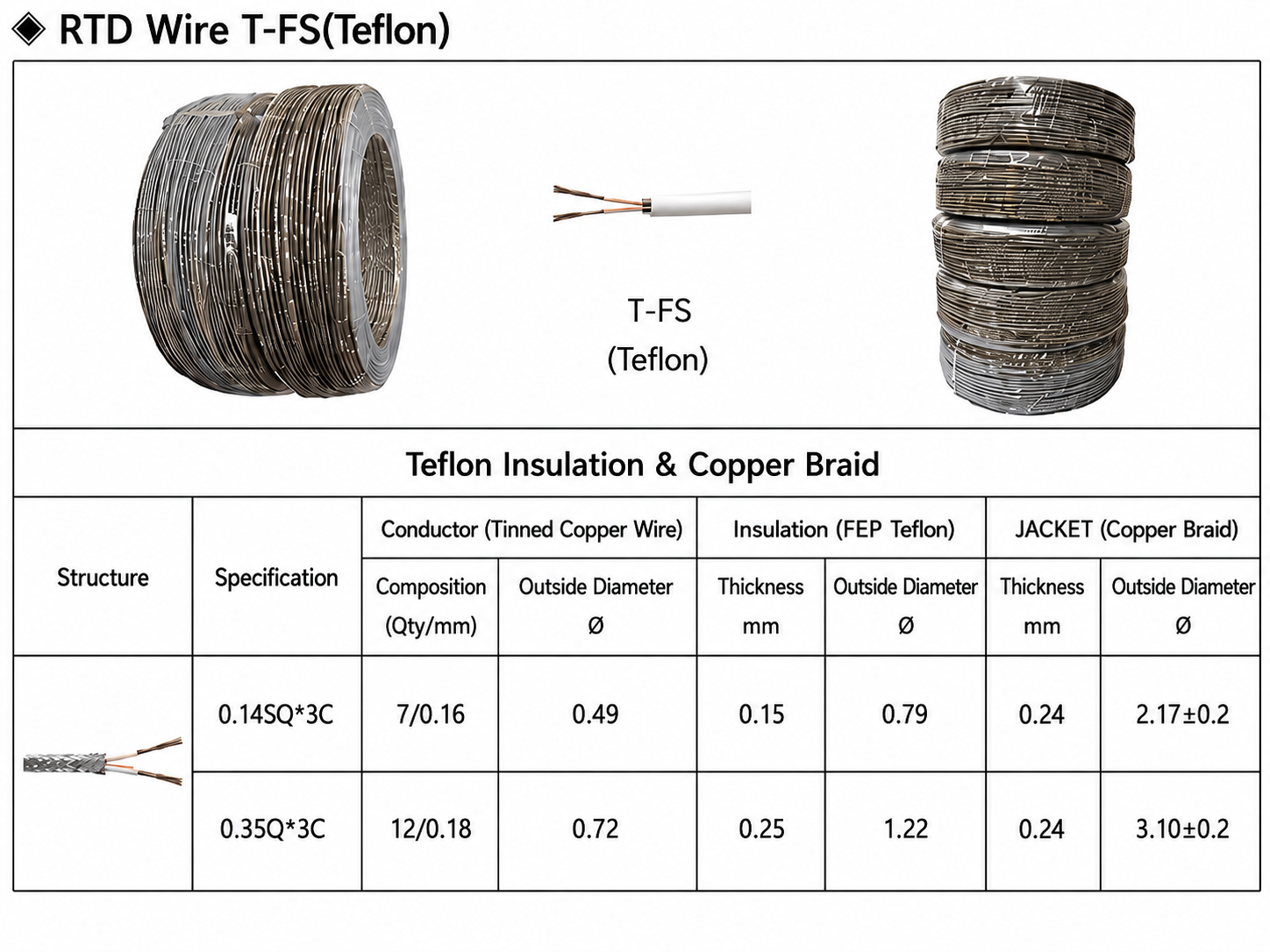

Specifications | Conductor Structure | Conductor Outer Diameter | FEP Insulation Thickness | Insulation Outer Diameter | Copper braid thickness | Finished Outer Diameter |
|---|---|---|---|---|---|---|
0.14SQ × 3C | 7/0.16 mm | Ø0.49 mm | 0.15 mm | Ø0.79 mm | 0.24 mm | Ø2.17 ±0.2 mm |
0.3SQ × 3C | 12/0.18 mm | Ø0.72 mm | 0.25 mm | Ø1.22 mm | 0.24 mm | Ø3.10 ±0.2 mm |
For products and specifications not listed in the table above, please contact us for more information.
※ Products and specifications not listed in the table above are available upon request.
※ For products and specifications not listed in the table above, please inquire separately.
Typical Use Cases
Connects RTD platinum resistance temperature sensors to temperature measurement and control equipment. Ideal for industrial environments requiring high heat resistance, chemical corrosion resistance, and mechanical protection.
Primary Applications:
• Semiconductor Manufacturing Equipment
• Industrial Automation Equipment
• Heating and Temperature Control Equipment
• Industrial Furnaces and Heat Treatment Equipment
• Chemical and Process Control Equipment
• Experimental and Testing Equipment
• PT100 / PT1000 Temperature Measurement System
