Thermocouple Extension Wire, GS Fiberglass Insulated + Copper Braided
Model:GS-Type (Glass & Copper Braid)
Origin:Made in Korea
GS-type thermocouple compensation wire features fiberglass yarn insulation and a copper braid outer sheath, offering excellent high-temperature resistance, wear resistance, and mechanical protection.
Available in KX, TX, EX, JX and other specifications for thermocouple signal transmission in high-temperature industrial environments.
Product Overview
Available in 3-core and 4-core configurations for PT100, PT1000, etc.
Signal connection between RTD platinum resistance temperature sensors and measurement/control equipment.
Product Specifications
Insulation structure:Fiberglass yarn insulation
Exterior protective structure:Copper wire braiding
Conductor Structure:Solid single-strand conductor
Conductor Specification:1/0.6 mm
Insulation Thickness:0.30 mm
Insulation Outer Diameter:1.20 mm
Copper Braid Thickness:0.24 mm
Finished Outer Diameter:1.73 × 2.92 mm
Optional type:KX / TX / EX / JX

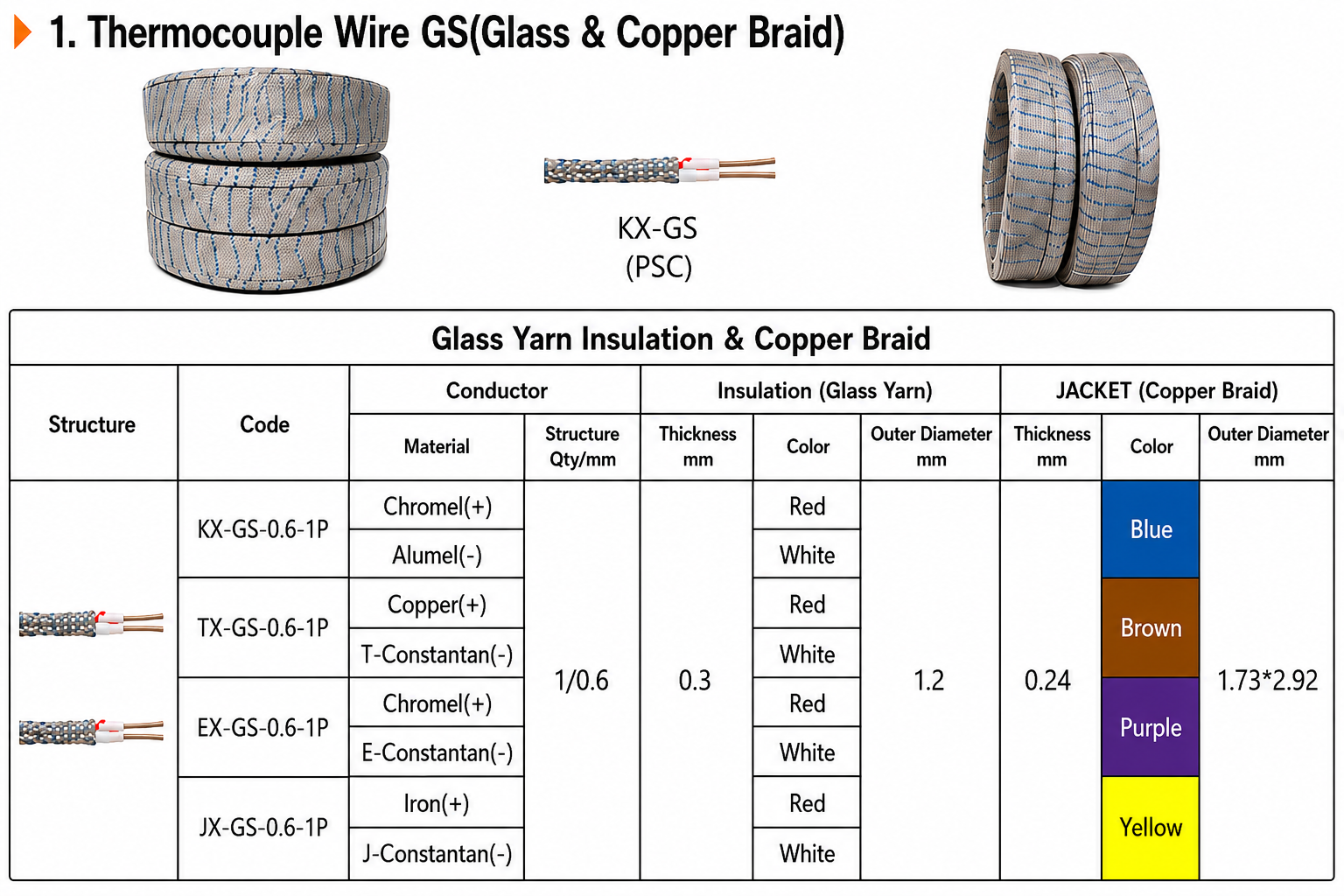

Product Model | Positive electrode conductor material | Negative electrode conductor material | Conductor Structure | Insulation Color | Outer protection color | Finished Outer Diameter |
|---|---|---|---|---|---|---|
KX-GS-0.6-1P | Chromel (+) | Alumel (-) | 1/0.6 mm | Red / White | Blue | 1.73 × 2.92 mm |
TX-GS-0.6-1P | Copper (+) | T-Constantan (−) | 1/0.6 mm | Red / White | Brown | 1.73 × 2.92 mm |
EX-GS-0.6-1P | Chromel (+) | E-Constantan (−) | 1/0.6 mm | Red / White | Purple | 1.73 × 2.92 mm |
JX-GS-0.6-1P | Iron (+) | J-Constantan (−) | 1/0.6 mm | Red / White | Yellow | 1.73 × 2.92 mm |
Material Name
ChromelNickel-chromium alloy
Alumel →Nickel-aluminum alloy
Copper →Copper
Constantan →Constantan
Iron →Iron
For products and specifications not listed in the table above, please contact us for more information.
※ Products and specifications not listed in the table above are available upon request.
※ For products and specifications not listed in the table above, please inquire separately.
Typical Use Cases
GS-type thermocouple extension cables are designed for industrial temperature measurement environments involving high temperatures, mechanical abrasion, and the need for external protection. They provide signal connections between thermocouple sensors and temperature control or measurement equipment.
Primary Applications:
• Semiconductors and Display Devices
• Industrial Furnaces and Heat Treatment Equipment
• Heating and temperature control equipment
• Industrial Automation Equipment
• High-temperature production equipment
• Experimental and Testing Equipment
• Thermocouple temperature measurement systems
