Temperature Cables and Materials
Temperature Measurement Series - Temperature Cables and Materials
Thermocouple Wire VX-G (PVC)
VX-G (PVC) Thermocouple Wire (PVC Insulated, PVC Sheathed)
Thermocouple wire GG (Glass)
GG (Glass) Solid Conductor Thermocouple Wire: Glass Yarn Insulation and Braided Sheath. High-temperature resistant for temperature signal transmission in high-temp applications.
Thermocouple wire FF (Teflon)
FF (Teflon) Thermocouple Wire: Teflon-insulated and jacketed for extreme temperature resistance, corrosion resistance, and reliable temperature signal transmission in harsh environments.
Thermocouple Extension Wire GG (Fiberglass) - Stranded Type
The Type GG thermocouple extension wire features a multi-strand twisted design with fiberglass yarn insulation and a fiberglass braided jacket. It offers excellent high-temperature resistance, flexibility, and mechanical protection. Ideal for thermocouple signal transmission in industrial equipment and high-temperature environments, available in WX, EX, RX, JX, TX, and other specifications.
Thermocouple Extension Wire, GS Fiberglass Insulated + Copper Braided
The GS-type thermocouple compensation lead features fiberglass yarn insulation and a copper wire braided outer sheath, offering excellent heat resistance, wear resistance, and mechanical protection. Available in KX, TX, EX, JX, and other specifications, it is designed for thermocouple signal transmission in high-temperature industrial environments.

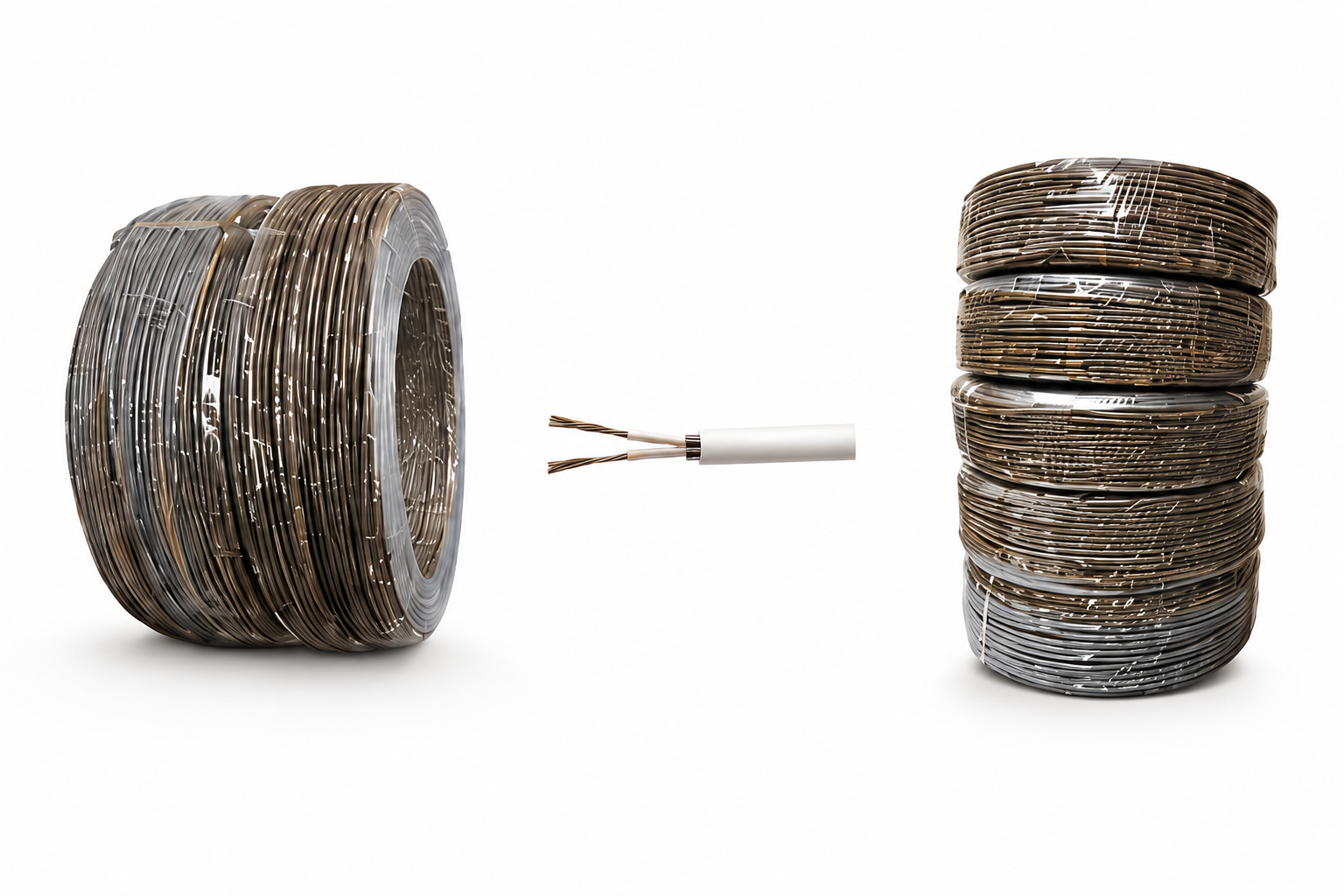

RTD Temperature Measurement Wire T-FS (FEP Insulated with Copper Braid)
Conductor Material: Tinned Copper Wire Conductor Structure: Multi-strand Core Count: 3 cores (3C) Insulation Material: FEP Teflon Outer Shielding: Braided Copper Wire Compatible Products: RTD / PT100 / PT1000 Temperature Sensors

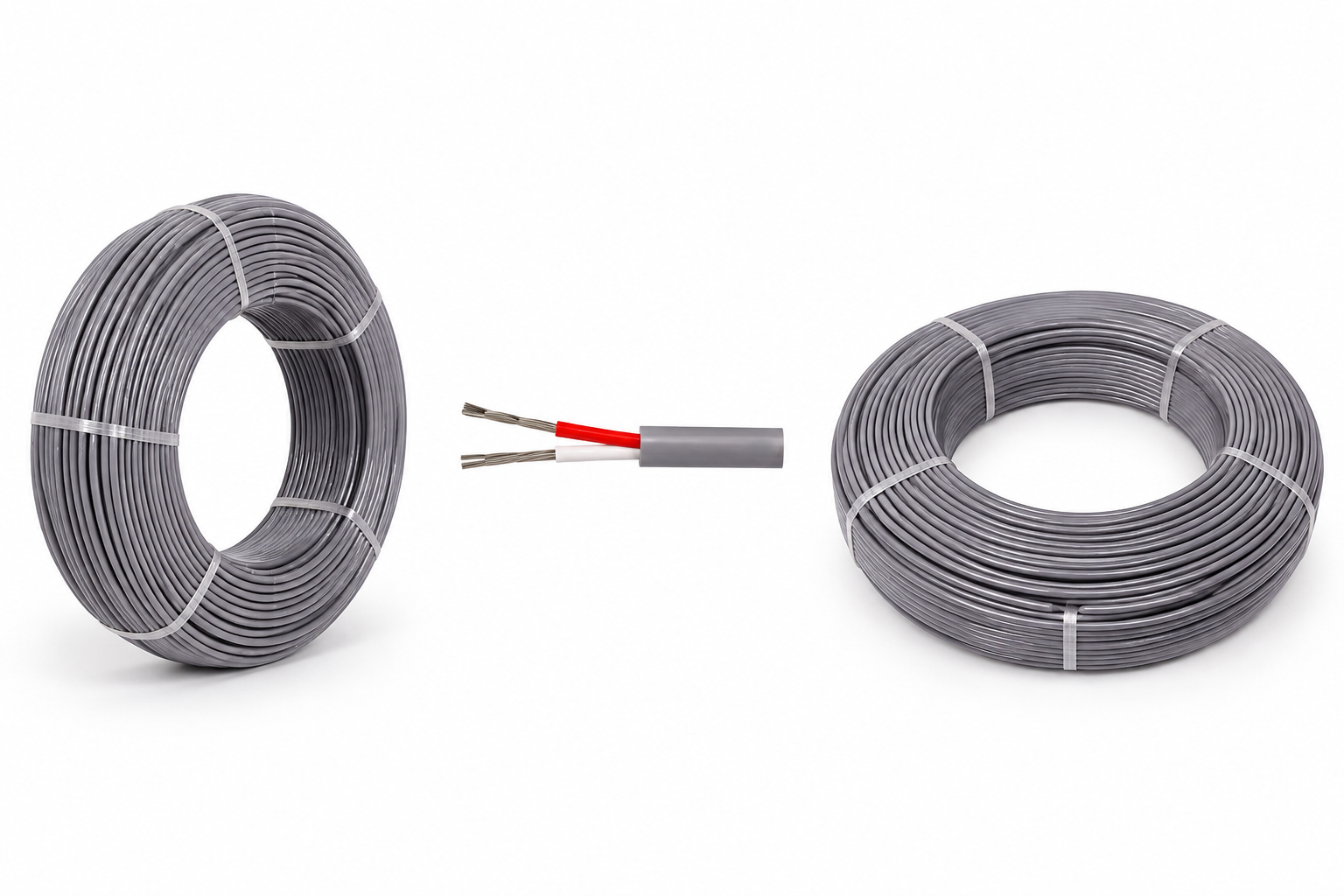

RTD Temperature Measurement Lead Wire T-FK (FEP Teflon Insulation + Silicone Jacket)
Provides 3-core and 4-core configurations for signal connection between PT100, PT1000 RTD platinum resistance temperature sensors and measurement or control devices.

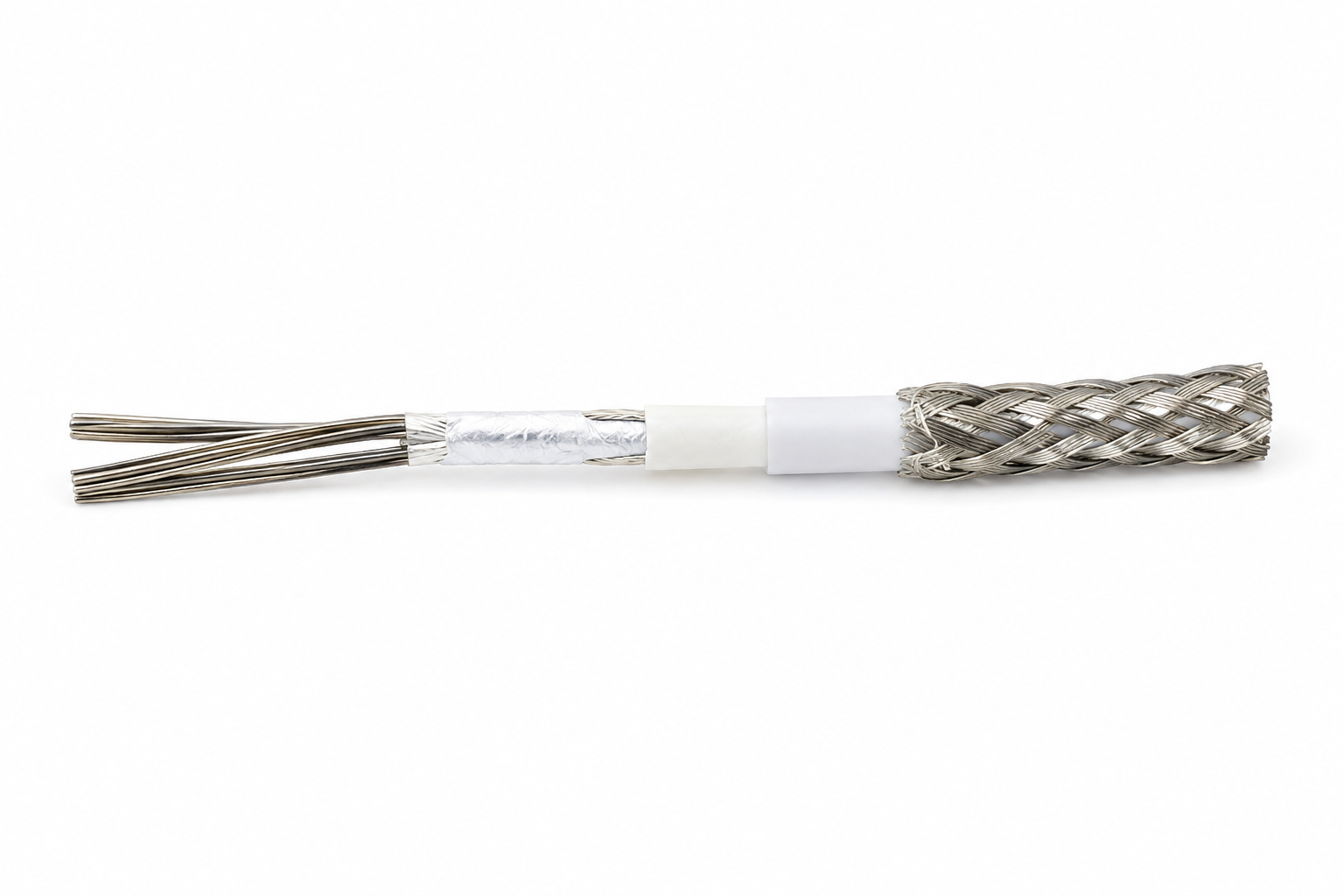

RTD Temperature Sensing Lead Wire, T-FGS (Teflon Insulation + Fiberglass Braiding + Copper Braiding)
Conductor Structure: Multi-strand insulated material: Teflon® intermediate protective layer: Glass fiber braid outer protective structure: Copper wire braid Core count: 3-core / 6-core specifications: 0.35SQ Compatible products: RTD / PT100 / PT1000 temperature sensors
